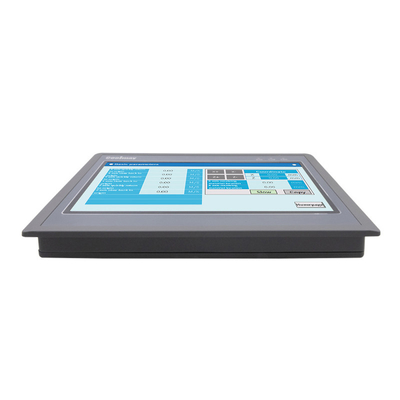

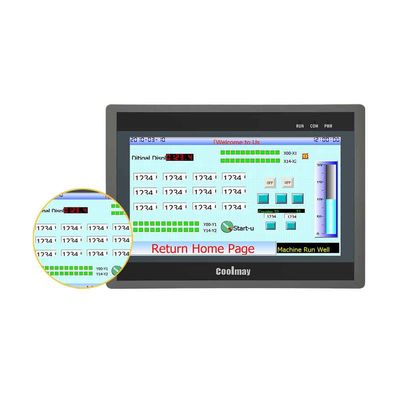

PLC HMI Integrated Programming Controller 44 Port Digital And 6 Port Analog PLC
| Plaats van herkomst | China |
|---|---|
| Merknaam | Coolmay |
| Certificering | CE, RoHS |
| Modelnummer | QM3G-100FH-44MT-4AD2DA-A4-A4 |
| Min. bestelaantal | 2 |
| Prijs | US$169~599 per unit |
| Verpakking Details | Verpakt in een standaard kartonnen doos |
| Levertijd | 3-5 Werkdagen |
| Betalingscondities | T/T, Western Union |
| Levering vermogen | 100, 000 stuks per maand |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Type | Industrial Machine Controller | Invoer/uitvoer | 24DI/20DO, transistoruitgangen |
|---|---|---|---|
| Hoge snelheid | 6 kanalen van 100 KHZ | Communicatie | Modbus rtu rs485 |
| Analoge I/O | 4AD 2DA | Software | GX Works2, Coolmay mView |
| Markeren | PLC HMI Integrated Programming Controller,6 Port Analog Integrated HMI PLC,44 Port Digital Integrated HMI PLC |
||
Productomschrijving
PLC HMI Integrated Programming controller 44 port digital and 6 port analog plc
Coolmay PLC uses military-grade 32-bit chips, with nanosecond-level running speed andstrong anti-interference ability.Both input and output are adopted optocoupler isolation. Itintegrates analog input and output modules, and RS-485,RS-232 communication modules,which are a brand-new control concept in terms of function, cost and convenience.
Specifications
Model : QM3G-100FH-44MT-4AD2DA-A4-A4
| Display | Dimension | 275*194*36mm |
| Cutout size | 262*180mm | |
| Power Consumption | 6-8W | |
| Feature | 60K-color resistive touch screen, supports portrait display | |
| Memory | RAM | 64MB |
| ROM | NOR Flash 16MB | |
| CPU | 32bit CPU 408MHz | |
| I/O | DI/DO | 24DI/20DO, transistor outputs |
| AI | 4 analog inputs 4-20mA | |
| AO | 2 analog outputs 4-20mA | |
| High-speed function | High-speed counting |
Single phase 6 channel 60KHz |
| High-speed pulse |
8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. |
|

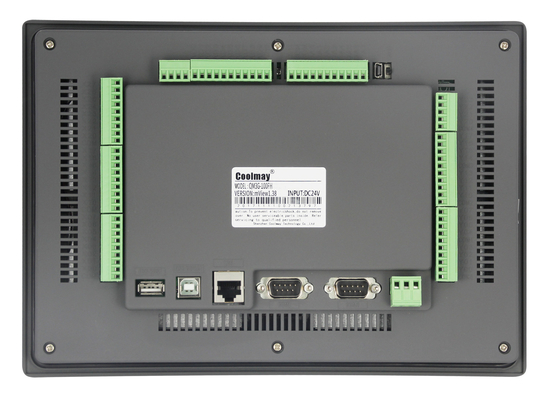

| Connection | HMI | Type-B HMI download port (can download PLC program through the USB penetrating function), RS232 |
| PLC | 1 Mini USB, 1 RS232 (program port), 1 RS485 | |
| Software | HMI | Coolmay mView HMI Programming Software |
| PLC | Compatible with Mitsubishi GX WORKS 2 |
Dimension
Cut-out size: 262*180mm
Wiring
