IP65 Front Panel HMI PLC All In One 6 Channels High-speed Counting High-speed Pulse PLC
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Invoersignaal | Digitaal analogon, | Hoge snelheid het tellen | 6 kanalen Eenfasige 60KHz, of 2 Kanalenab (z) Fase 30KHz + 1 Kanaalab Fase 5KHz |
|---|---|---|---|
| Garantie | 18 maand | Afmeting | 226*163*35.6mm |
| Beschermingsniveau | IP65 (voorpaneel) | Knipselgrootte | 217*154mm |
| Markeren | IP65 HMI PLC All In One,Front Panel PLC HMI,High-speed Pulse PLC |
||
Productomschrijving

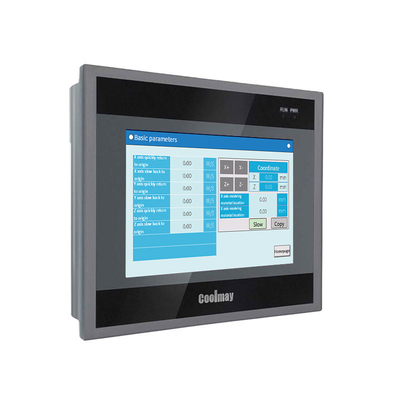

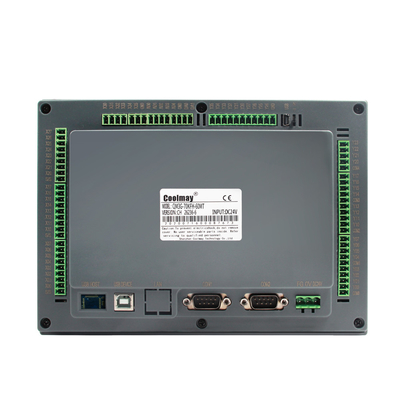

IP65 front panel HMI PLC All In One 6 Channels High-speed counting High-speed pulse
Product Description:
Introducing the all-in-one HMI PLC, an automation control touch screen controller that offers unbeatable performance and unbeatable value. With a 7-inch screen size, this PLC controller provides a wide range of features, including IP65 (front panel) protection, support for interrupts, linear arc interpolation, PID auto-tuning, 32K program capacity, 32K retentive register, high-speed counting, and analog and digital input signals. The HMI PLC offers a 6-channels single-phase 60KHz or 2-channels AB (Z) phase 30KHz + 1-channel AB phase 5KHz for high-speed counting. This PLC controller is ideal for industrial automation applications, providing a reliable, powerful and cost-effective solution.
Features:
- Product Name: HMI PLC All In One
- Output Signal: Analog, Digital
- Protection Level: IP65(front panel)
- Dimension: 226*163*35.6mm
- Size: 7 Inch
- Input Voltage: DC 24V
- PLC controller, machine controller, automation control
Technical Parameters:
| Name | HMI PLC All In One |
|---|---|
| Display | TFT LCD |
| Resolution | 800x480 |
| Size | 7 Inch |
| Cutout size | 217*154mm |
| Input Voltage | DC 24V |
| High-speed counting | 6 Channels Single-phase 60KHz, Or 2 Channels AB (Z) Phase 30KHz + 1 Channel AB Phase 5KHz |
| Output Signal | Analog, Digital |
| Protection Level | IP65 (front panel) |
| Warranty | 18 Month |
Applications:
First, there is Garment making equipment like a screw machine, tapping machine, ultrasonic cleaning machine, and masterbatch machine. Then, there are Testting machines, laminating machines, hot pressing machines, battery equipment/spot welding machines, UV lamp curing, ultrasonic cleaning equipment, loading and unloading, SMT peripheral equipment, terminal machines, and injection molding machines.
Lastly, there are environmental protection equipment like LED lamps, defoaming machines, labeling machines, laser marking machines, test fixtures, reflow soldering/shoe machine equipment, SKD stepping/testing equipments/laminating, power distribution cabinets, and testing tests.
Customization:
HMI PLC All In One
Brand Name: Coolmay
Model Number: EX3G-8070H
Place of Origin: China
Certification: CE, ISO9001
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 1-3 working days
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 1000 pcs/day
CPU: Dual core 1GHZ
Cutout size: 217*154mm
Name: HMI PLC All In One
Output Signal: Analog, Digital
High-speed counting: 6 Channels Single-phase 60KHz, Or 2 Channels AB (Z) Phase 30KHz + 1 Channel AB Phase 5KHz
Features:
- Touch screen controller
- 7 inch touch screen
- Automation control
- PLC control
Support and Services:
Technical Support and Service for HMI PLC All In One
We provide technical support and service for HMI PLC All In One. Our team of experienced engineers and technicians will provide you with the best advice and solutions to ensure your HMI PLC All In One operates smoothly and efficiently.
Our highly trained staff will provide you with regular maintenance and troubleshooting services, as well as advice on how to best utilize your HMI PLC All In One.
We also offer online support and remote access services if needed. Our experts are ready to assist you with any questions or issues you may have.
If you ever experience a problem or have any questions, please don’t hesitate to contact us. Our team of experts is here to help you get the most out of your HMI PLC All In One.
